Logic Level Controlled Alarm (CB19899E)

Details
Written by: Newton C. Braga

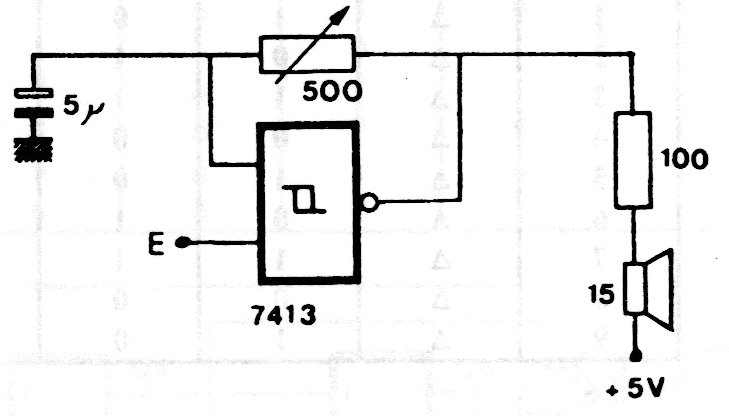

This circuit can function as an output shield for microcontrollers, being compatible with TTL logic. The frequency is adjusted in the trimpot. TTL power is 5 V.




| Clique na imagem para ampliar |
