Turntable Preamplifier (CB19172E)

Details
Written by: Newton C. Braga

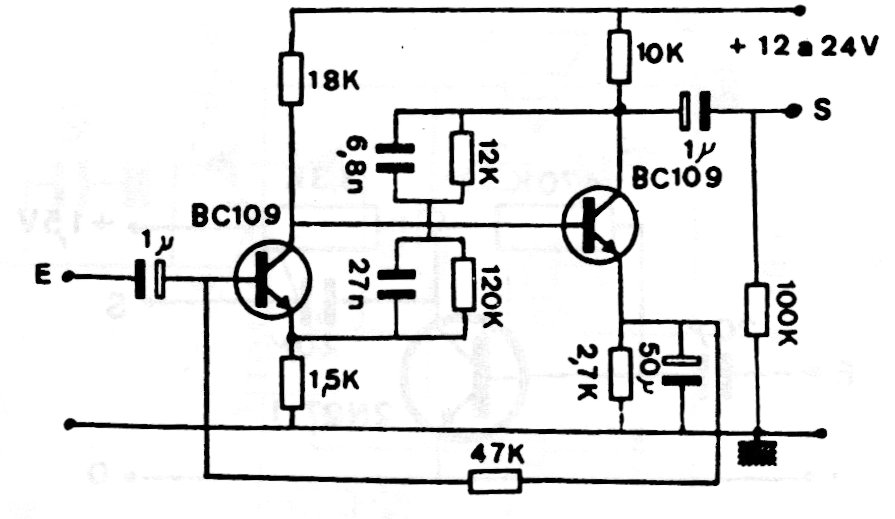

This RIAA equalizer preamp was found in a 1990s schematic. The transistors are an old version of the BC549 that can be used as a replacement. Signal input and output cable must be shielded.
