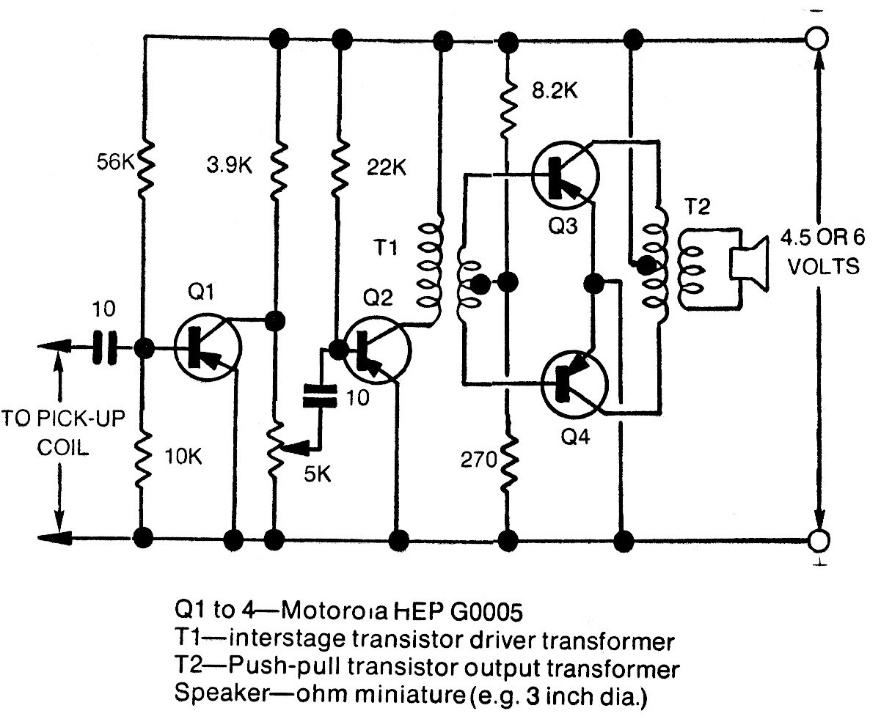

This stage of low power audio amplification was very common in devices powered by the 60's and 70's battery. The circuit is from a publication of the time and the transistors used admit equivalents with eventual changes in the polarization resistors.
| Clique na imagem para ampliar |
