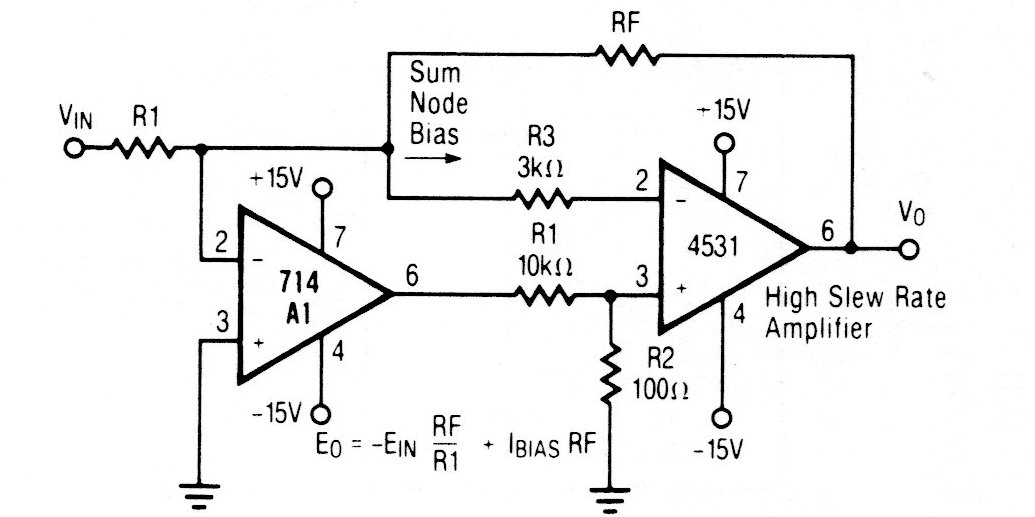

High Speed Composite Amplifier (CB19726E)

Details
Written by: Newton C. Braga



The operational 714 (not the 741) is an old Raytheon type that is no longer common today. The circuit can be implemented with modern operational. The power supply must be symmetrical.
