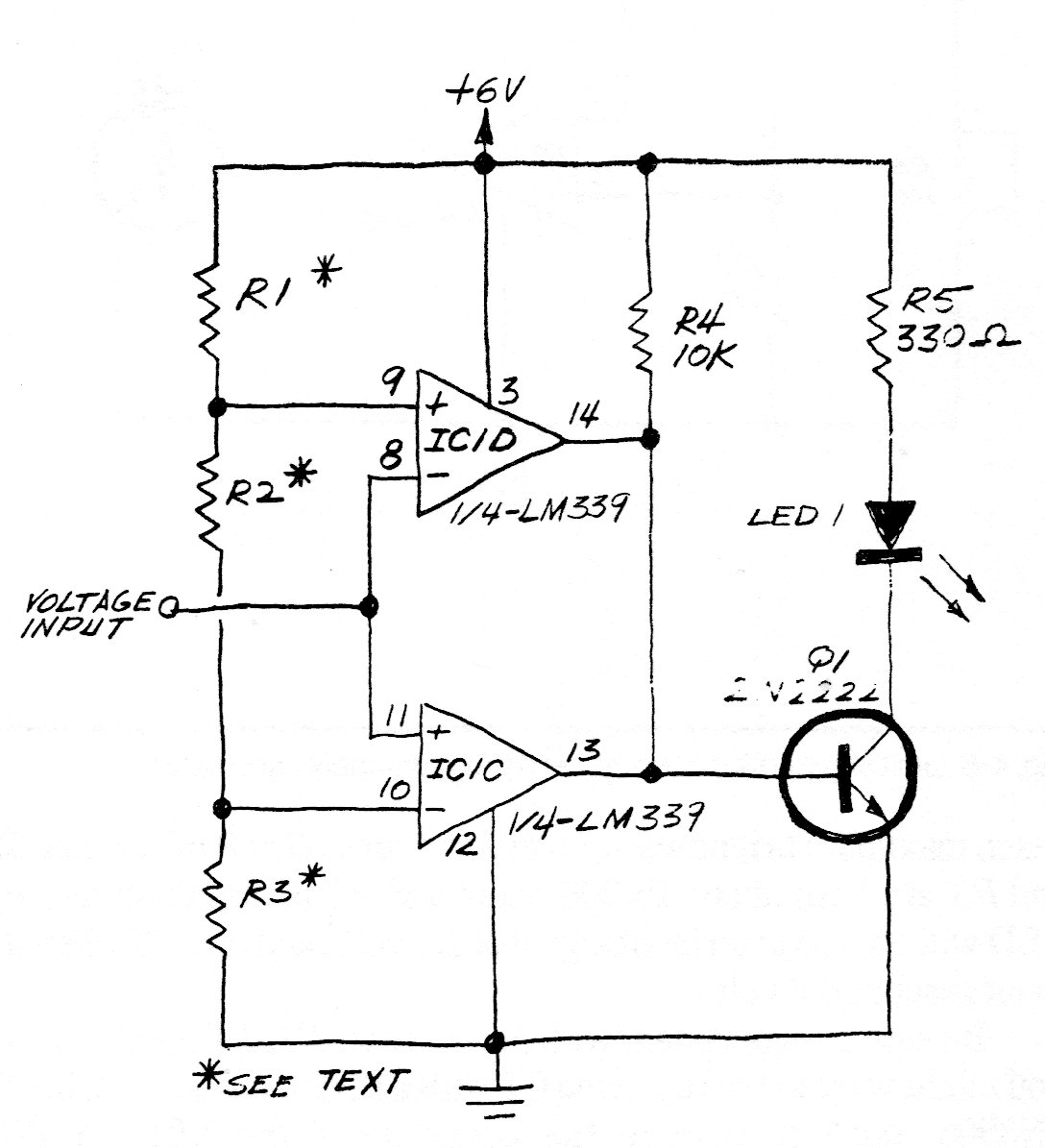

This window comparator or limit comparator has its actuation range determined by resistors R1 to R3 whose typical values can be between 1 and 100 k. The circuit, in this case, triggers an LED, but other loads can be used depending on the application. The supply voltage can be between 5 and 12 V. The circuit is from American documentation from the 90's.
