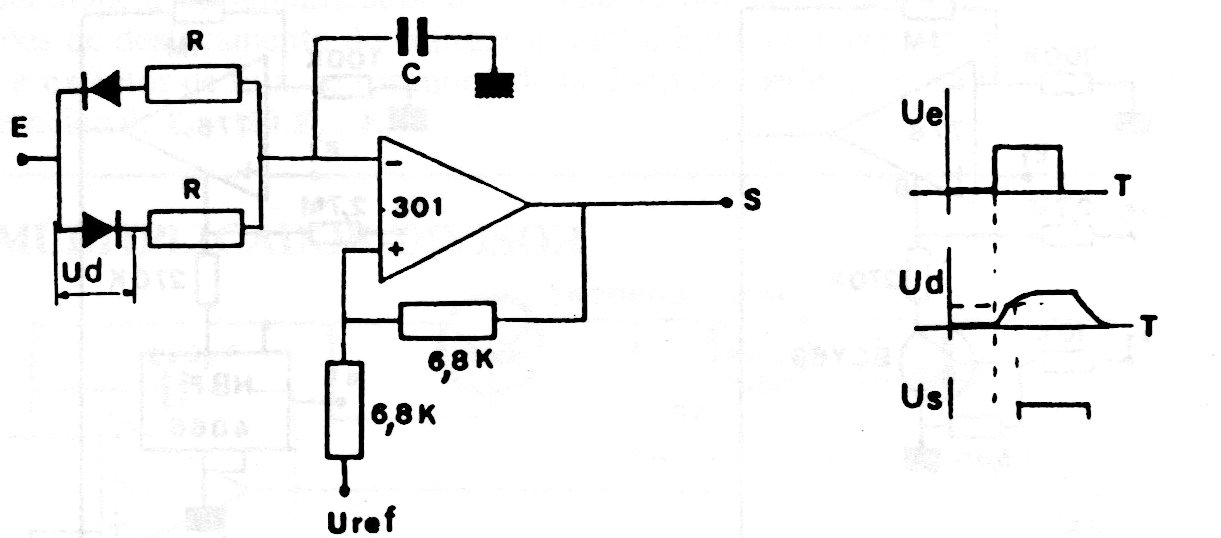

This circuit slows down a pulse applied to its input. The delay depends on the capacitor and equivalent integrated circuits can be used. The circuit response is given next to the diagram and the power supply must be symmetrical with voltage according to the application.
