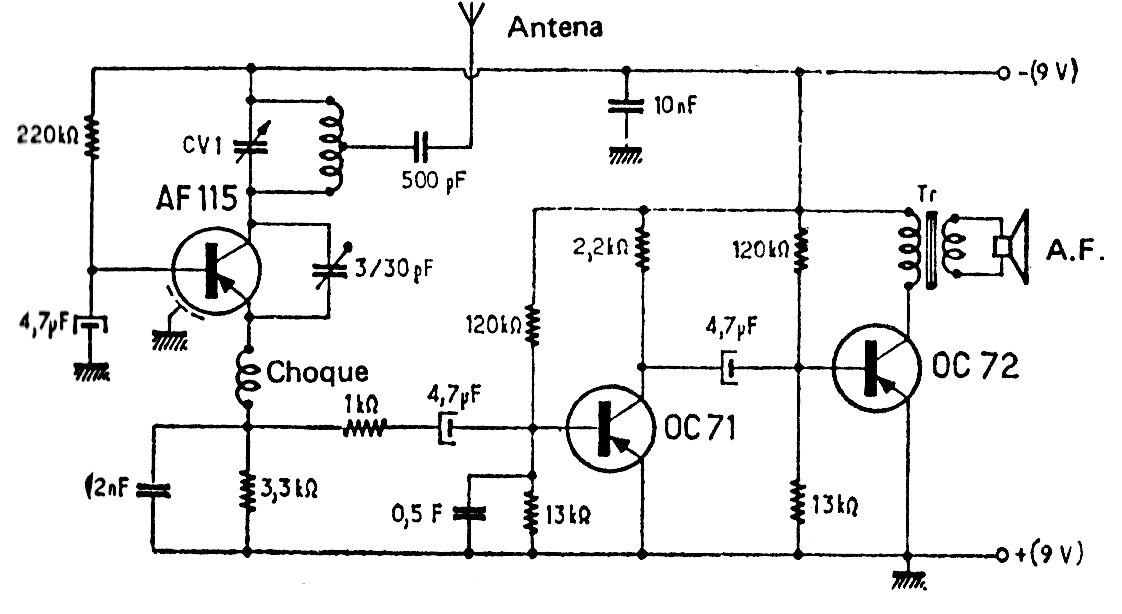

This VHF receiver with three transistors and loudspeaker listening was found in European documentation from the 1970s. The transformer is output to transistors and the coil of 3 to 7 turns of wire 26 or 28 in the form of 1 cm determines the range of tuned frequencies between 80 and 150 MHz.
