Sound Activated Relay (CB19971E)

Details
Written by: Newton C. Braga

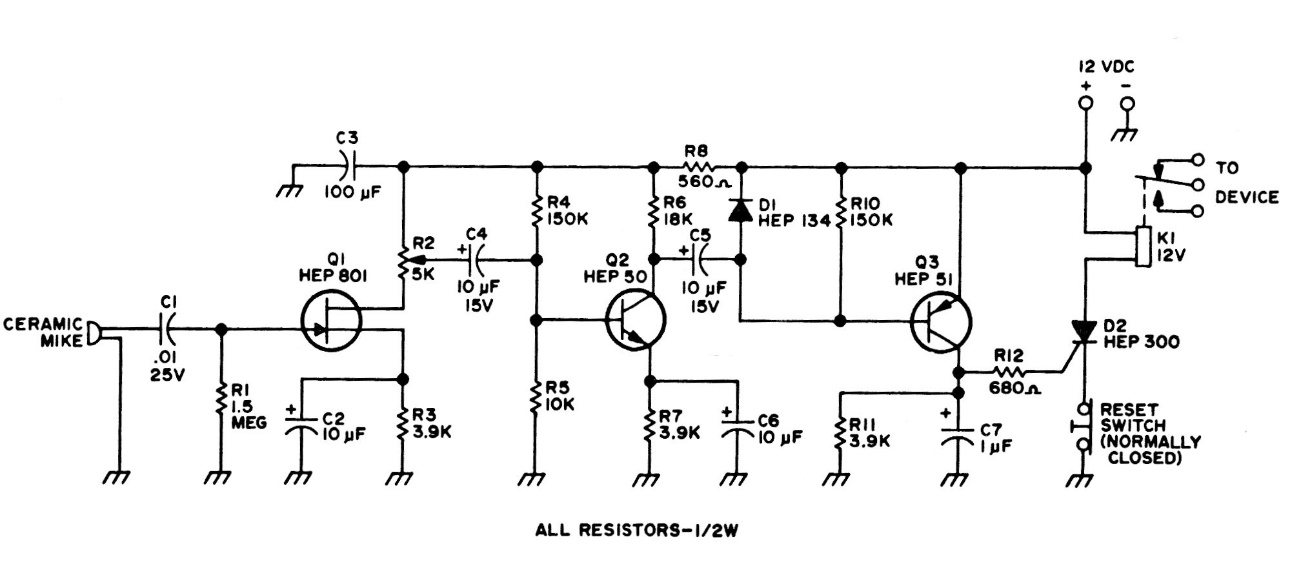

This Vox or sound activated relay was found in an American documentation from 1975. Equivalent transistors can be used, and the SCR can be a TIC106. The relay is according to the supply voltage.




| Clique na imagem para ampliar |
