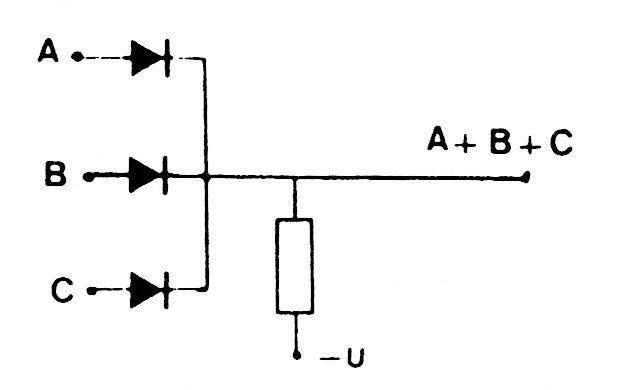

In the figure we have the way to implement a 3-Input logic function OR inputs using common diodes. The circuit may have other port numbers.
| Clique na imagem para ampliar |
Diodo OR Gate (CB19881E)
- Details
- Written by: Newton C. Braga
In the figure we have the way to implement a 3-Input logic function OR inputs using common diodes. The circuit may have other port numbers.
