Amplifier with Silencer (CB19995E)

Details
Written by: Newton C. Braga

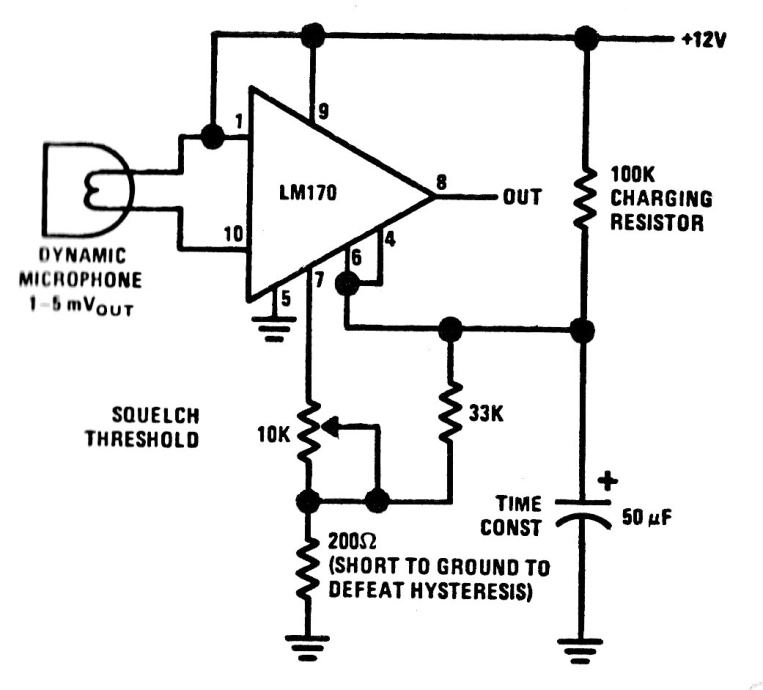

This silencer or squelch preamp circuit was found in a documentation for radio amateurs. It completely mutes the circuit when there is no sound picked up by the microphone.




| Clique na imagem para ampliar |
