Different Bistable (CB19896E)

Details
Written by: Newton C. Braga

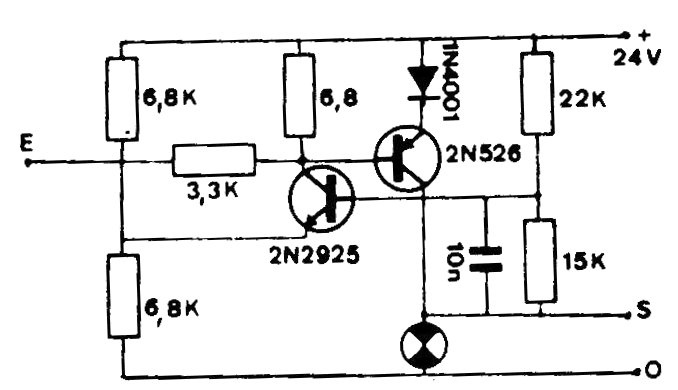

This circuit with two transistors was found in ancient European documentation. Transistors support equivalents. The indicator on this circuit is an ordinary 50 to 100 mA lamp.
