FET Amplifier Stage w (CB19571E)

Details
Written by: Newton C. Braga

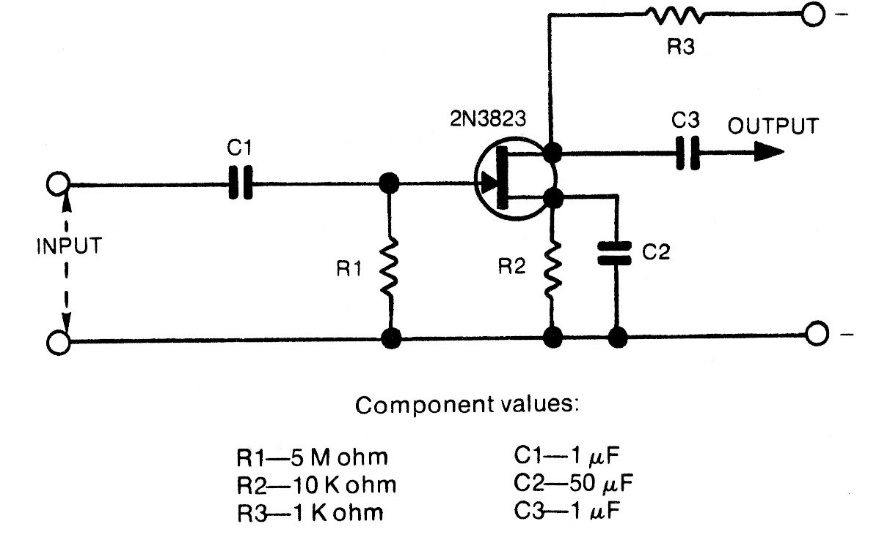

This step of good gain was obtained in an American publication of the 1980s. The circuit can be powered by voltages from 3 to 9 V and the FET can be of almost any type.
