Antique Automotive Voltage Regulator (CB20068E)

Details
Written by: Newton C. Braga

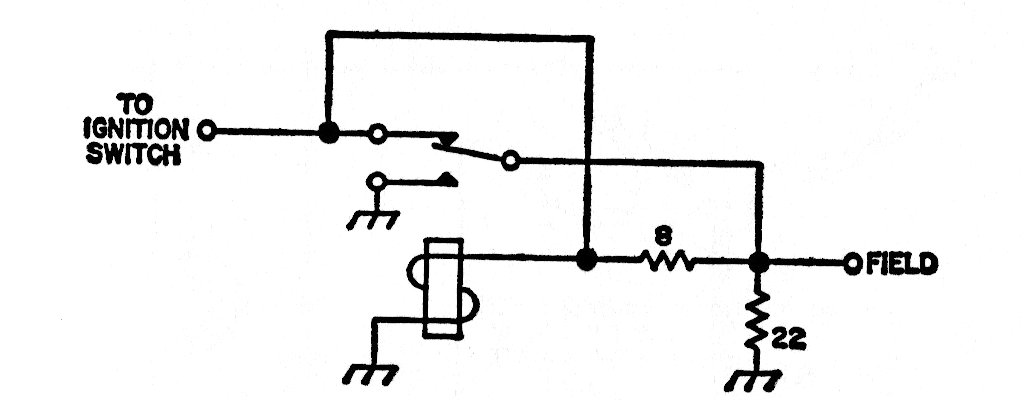

This is the circuit of an automotive voltage regulator from the 1970s. The circuit is entirely electromechanical based on the closing of a relay contacts according to the voltage.
