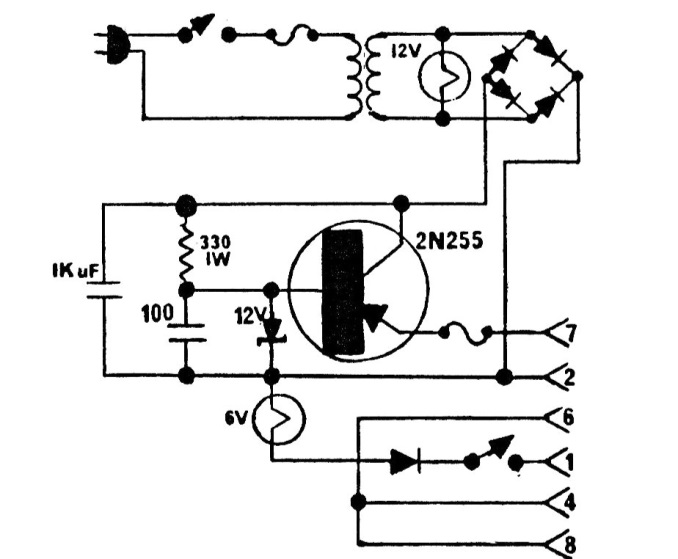

This circuit was suggested by Motorola to power a transceiver from the power grid. The transistor is of power admitting equivalent as the 2N3055 with radiator and the transformer has 12 V of secondary voltage.
| Clique na imagem para ampliar |
12 V Power Supply (CB20224E)
- Details
- Written by: Newton C. Braga
