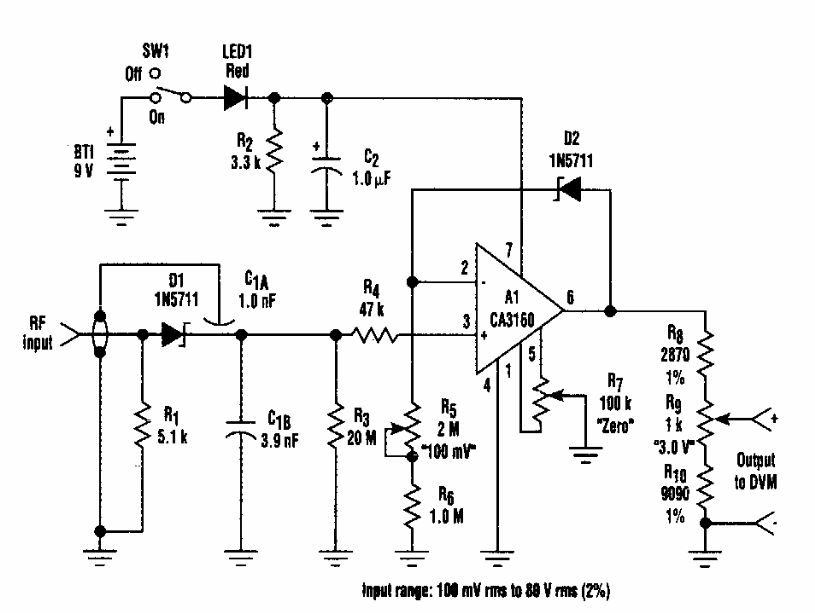

Linearized RF Detector (CB20895E)

Details
Written by: Newton C. Braga



Found in a 1980s publication, this circuit can be modified to use modern components and operate at lower voltages. The power supply does not have to be symmetrical.
