Logarithmic amplifier (CB20631E)

Details
Written by: Newton C. Braga

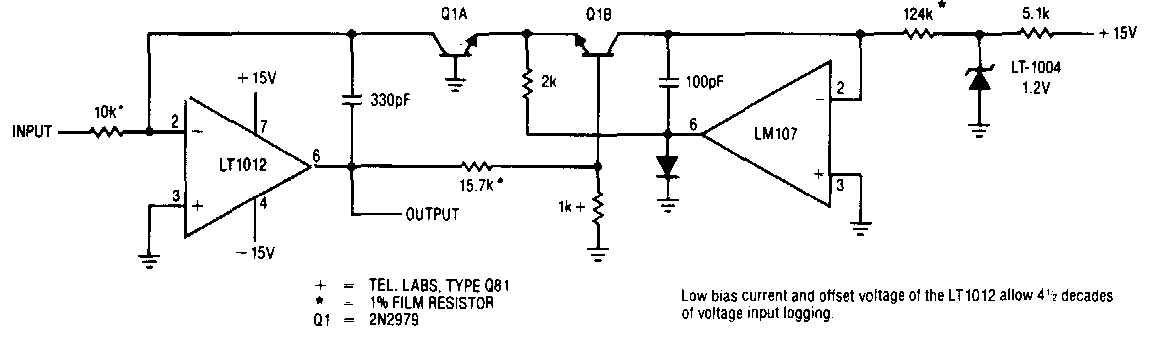

This circuit is from 80's Linear Technology documentation. Equivalent operational amplifiers can be used, and the power supply must be symmetrical.
