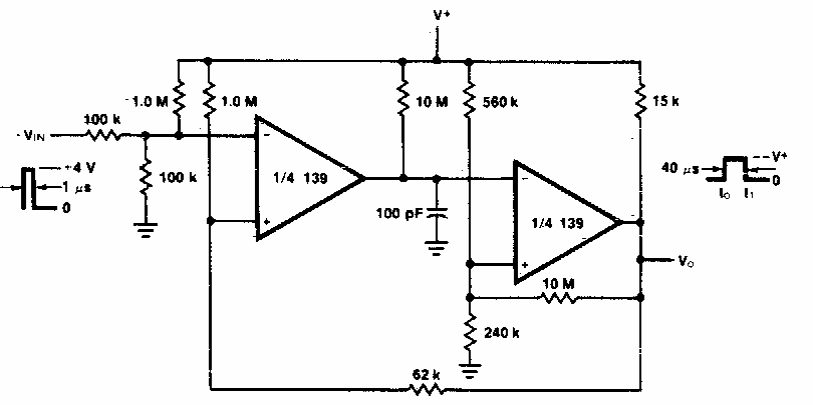

Monostable multivibrator (CB20796E)

Details
Written by: Newton C. Braga



This configuration makes use of currently uncommon components. In fact, we found it in documentation from the 70s. Equivalent operational amplifiers can be used.






| Clique na imagem para ampliar |
