Transistor Push Pull Power Amplifier (CB20005E)

Details
Written by: Newton C. Braga

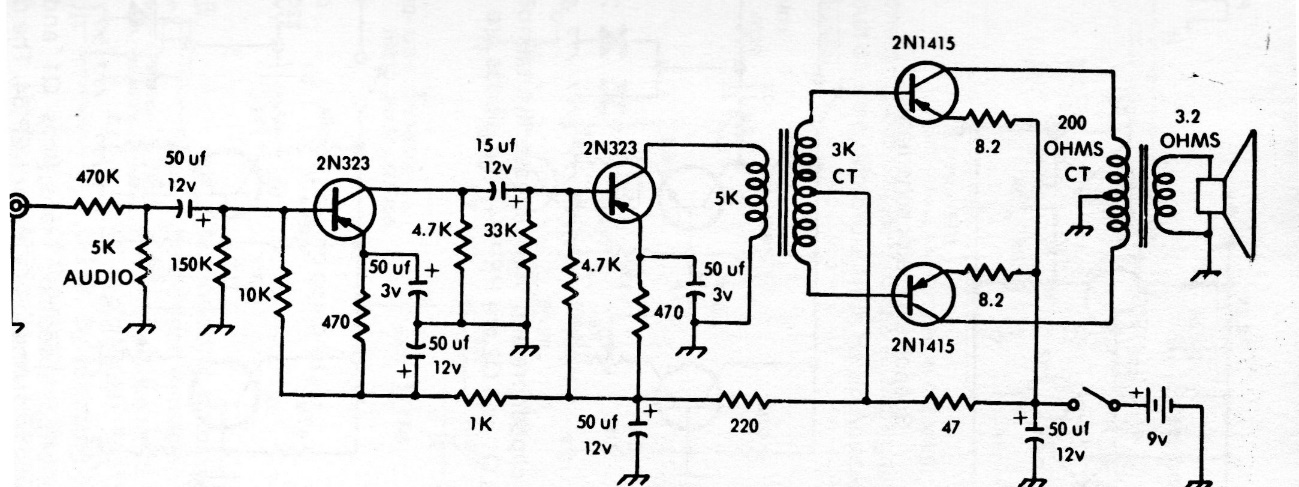

This circuit of a few watts of power shows a typical configuration from the 70s using driver and output transformers. Output transistors must use a heatsink.
