2 meters preamplifier (CB20274E)

Details
Written by: Newton C. Braga



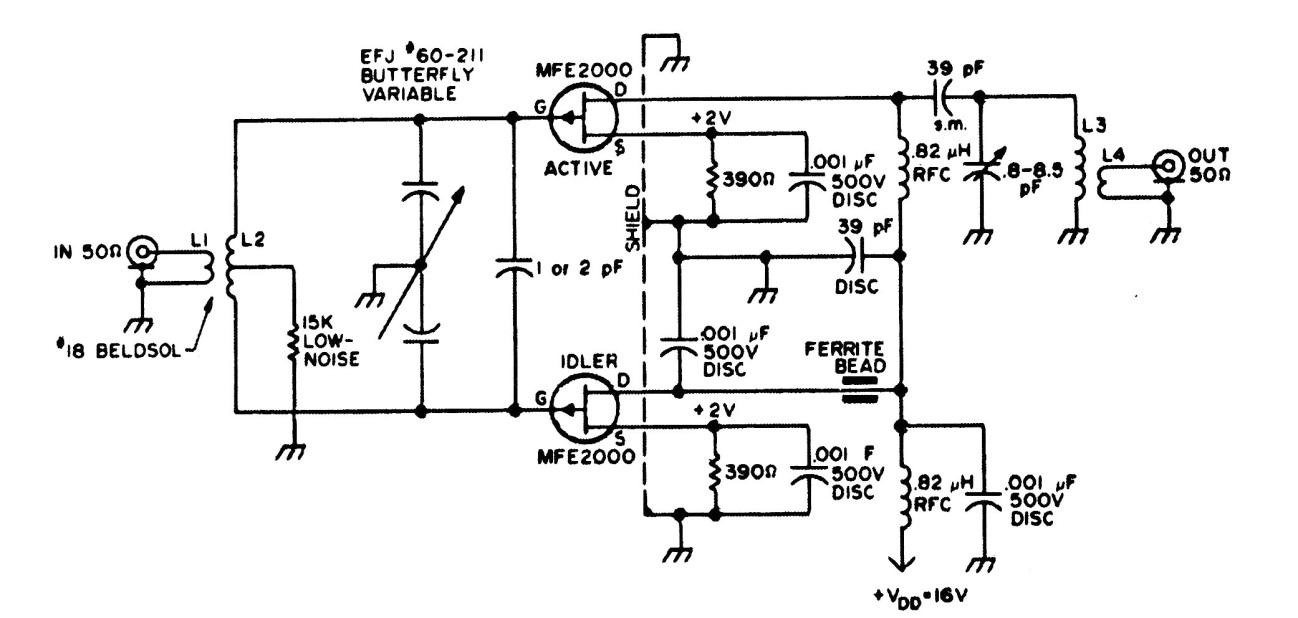

This circuit with junction field effect transistors was found in documentation from the 1980s. The transistors can be MPF102 or BF245 and details of the coils are not given in the original.
