80 m Regenerative Receiver (CB20231E)

Details
Written by: Newton C. Braga

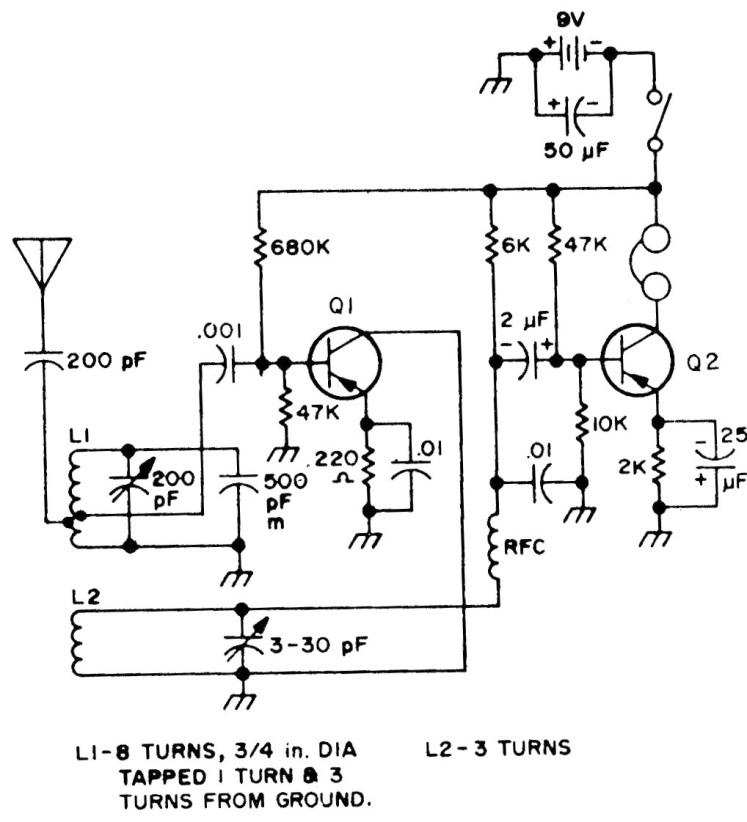

This receiver of two transistors for the 3.5 MHz band was found in a circuit manual from the 80's. The coil data are found next to the diagram and the transistors can be general purpose PNP.




| Clique na imagem para ampliar |
