200 kHz Time Base (CB20124E)

Details
Written by: Newton C. Braga

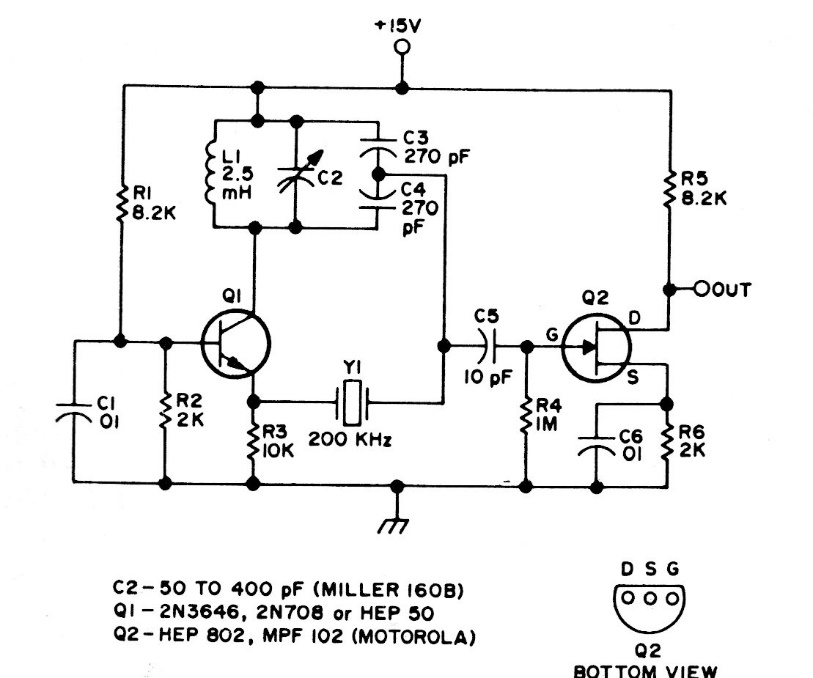

This circuit is from old documentation, but it can be implemented with modern transistors such as 2N2222 for bipolar and BF124 for FET. The crystal determines the operating frequency.




| Clique na imagem para ampliar |
