Mini Radio AM (CB20322E)

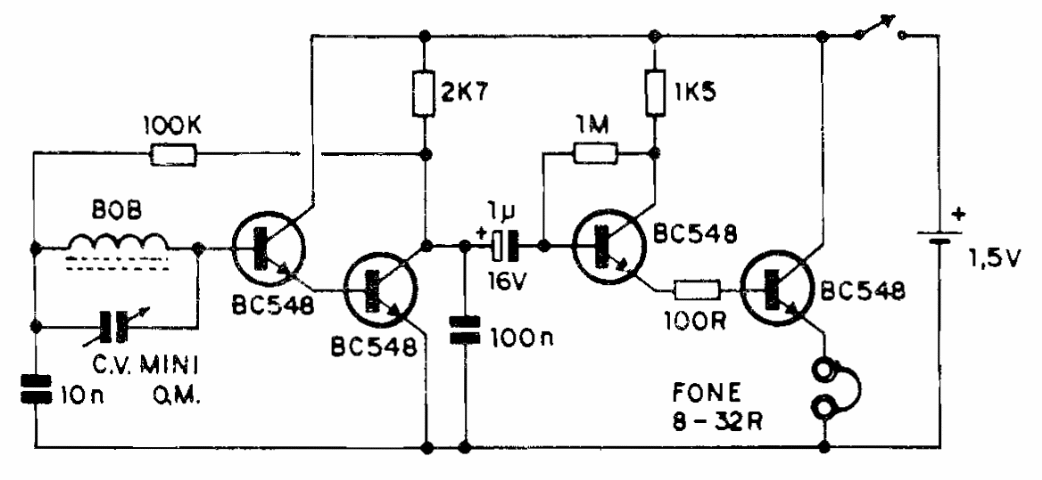

In this receiver the is formed by 80 turns of wire 28 or close in a ferrite rod. The handset is low impedance and powered by a standard battery.

| Clique na imagem para ampliar |

Automatic gain control for audio (CB20640E)
This circuit was found in an American publication called Ham Radio. The circuit uses still current...
Phase Splitter (CB4239E)
From an audio signal, this circuit gets two signals of the same amplitude and opposite phases....
Low frequency linear modulator (CB7305E)
Found in an Electronic Design from 1968 this circuit generates a linear sawtooth signal modulated...
