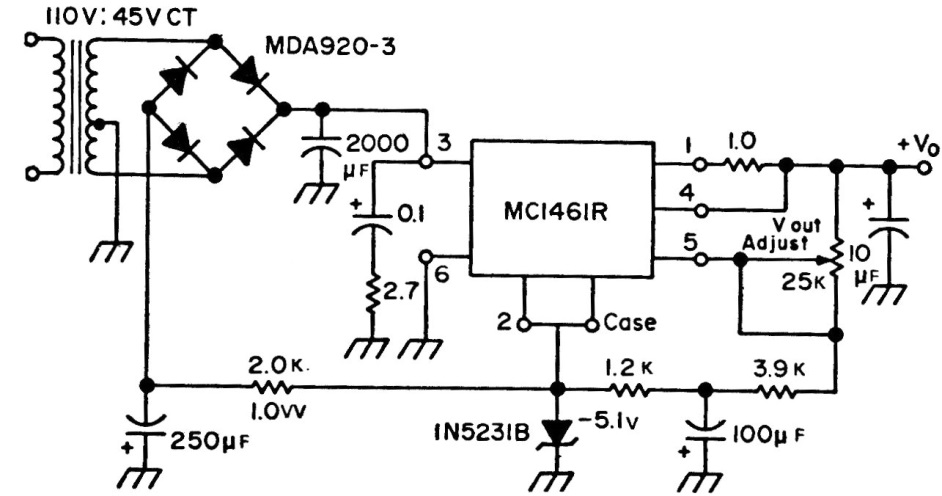

0 to 25 V x 400 mA power supply (CB20208E)

Details
Written by: Newton C. Braga



This circuit is from old American documentation, using a regulator integrated circuit that is uncommon today. The diodes can be 1N4002 and the transformer has a 500mA secondary.
