Simple Symmetrical 6 V Power Supply (CB20207E)

Details
Written by: Newton C. Braga

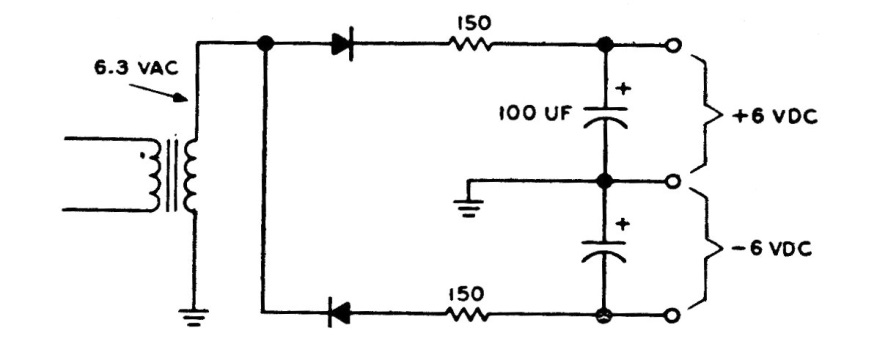

This simple, unregulated power supply with an approximate 6 V output voltage can supply currents up to about 500 mA depending on the transformer. The diodes can be 1N4002.
