80-meter range receiver (CB20280E)

Details
Written by: Newton C. Braga

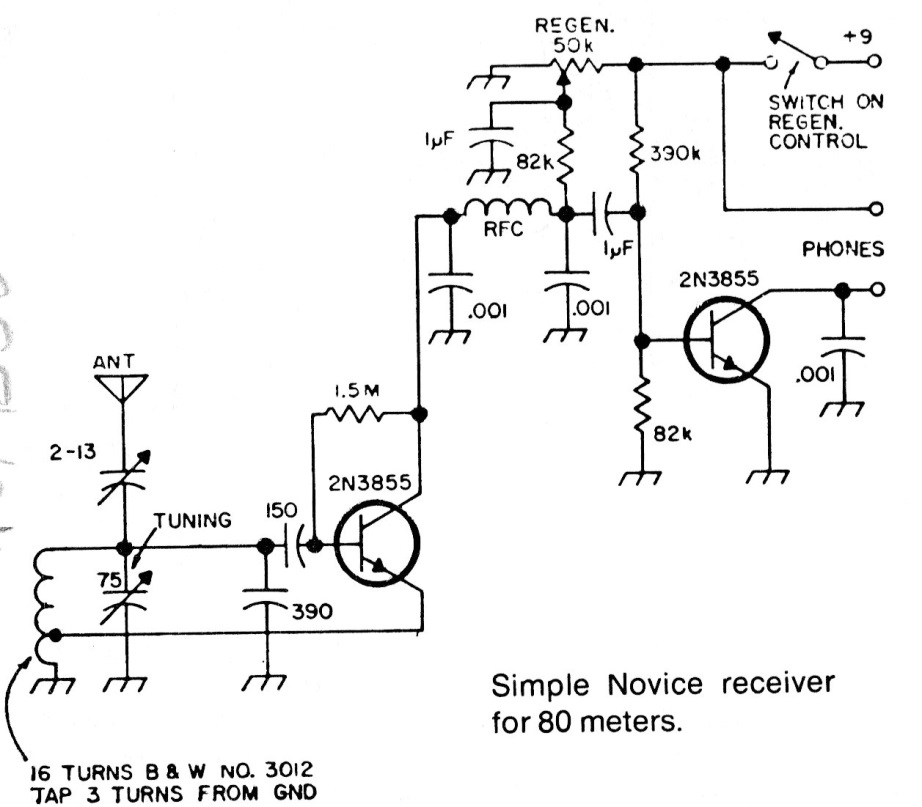

This simple receiver of two transistors for the 80-meter range was found in an American documentation from the 1980s. The transistors admit equivalents and the antenna must be long.




| Clique na imagem para ampliar |
