12 to 6 V reducer (CB20243E)

Details
Written by: Newton C. Braga

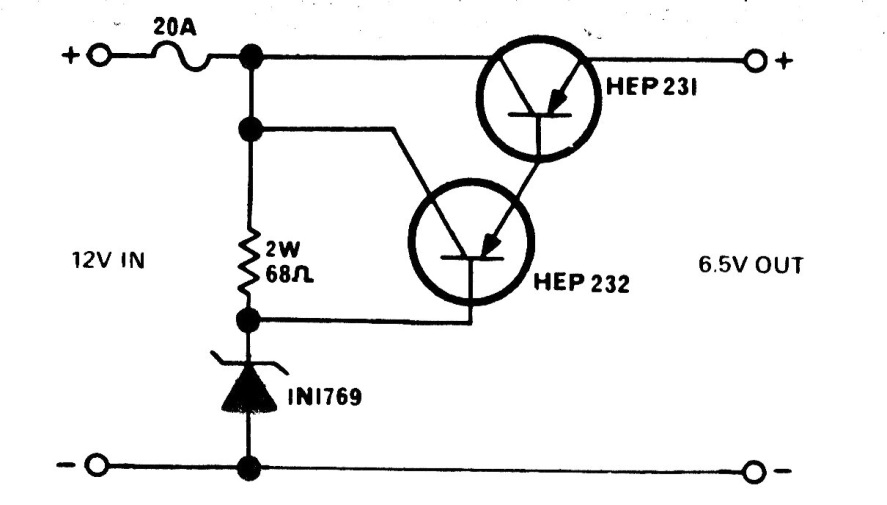

This circuit is from an old American documentation and its use in motorcycles with 12 V is suggested to power 6V radios. The transistor can be the BD136 and BC548.








| Clique na imagem para ampliar |
