Schmitt Trigger (CB20110E)

Details
Written by: Newton C. Braga

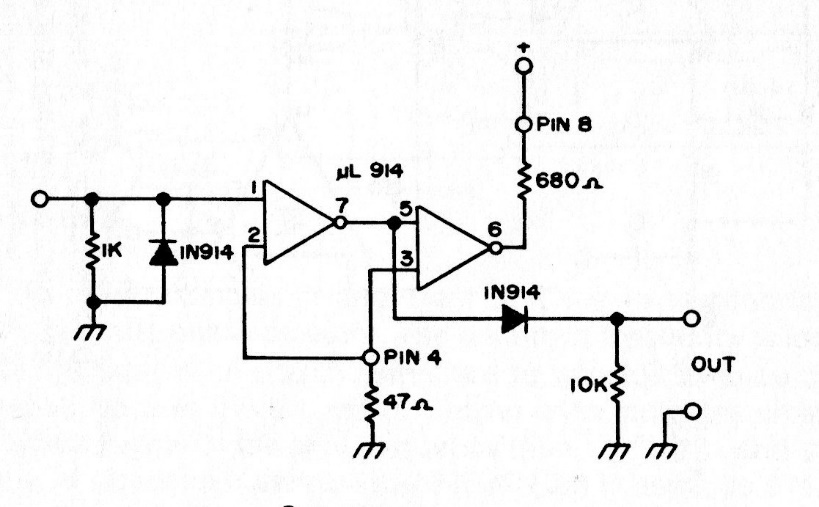

This trigger circuit was found in an American documentation from the 1980s. The amplifiers used can be replaced by equivalents with characteristics according to the frequency.




| Clique na imagem para ampliar |
