Shield TTL (CB20170E)

Details
Written by: Newton C. Braga

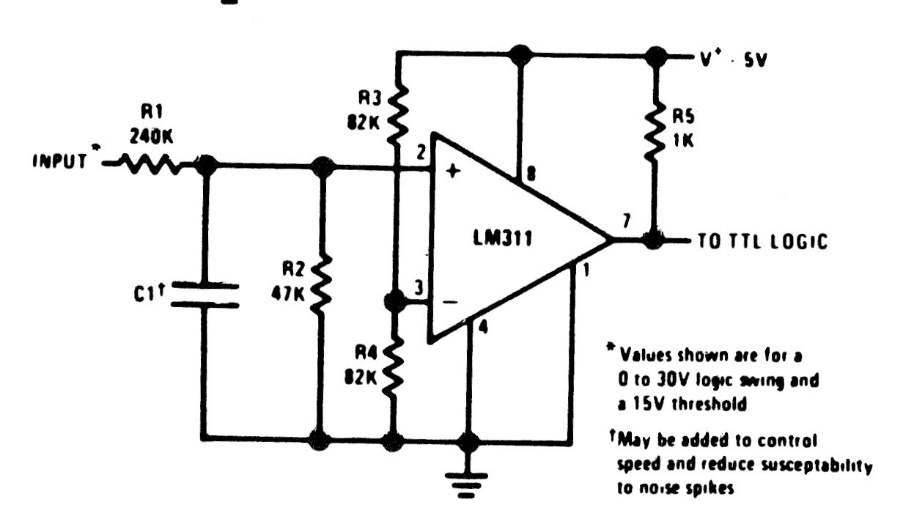

This TTL shield with high level logic is from the LM111's own 80's manual. The integrated circuit is no longer easily found, but the circuit can be adapted to use modern equivalent operational amplifiers.




| Clique na imagem para ampliar |
