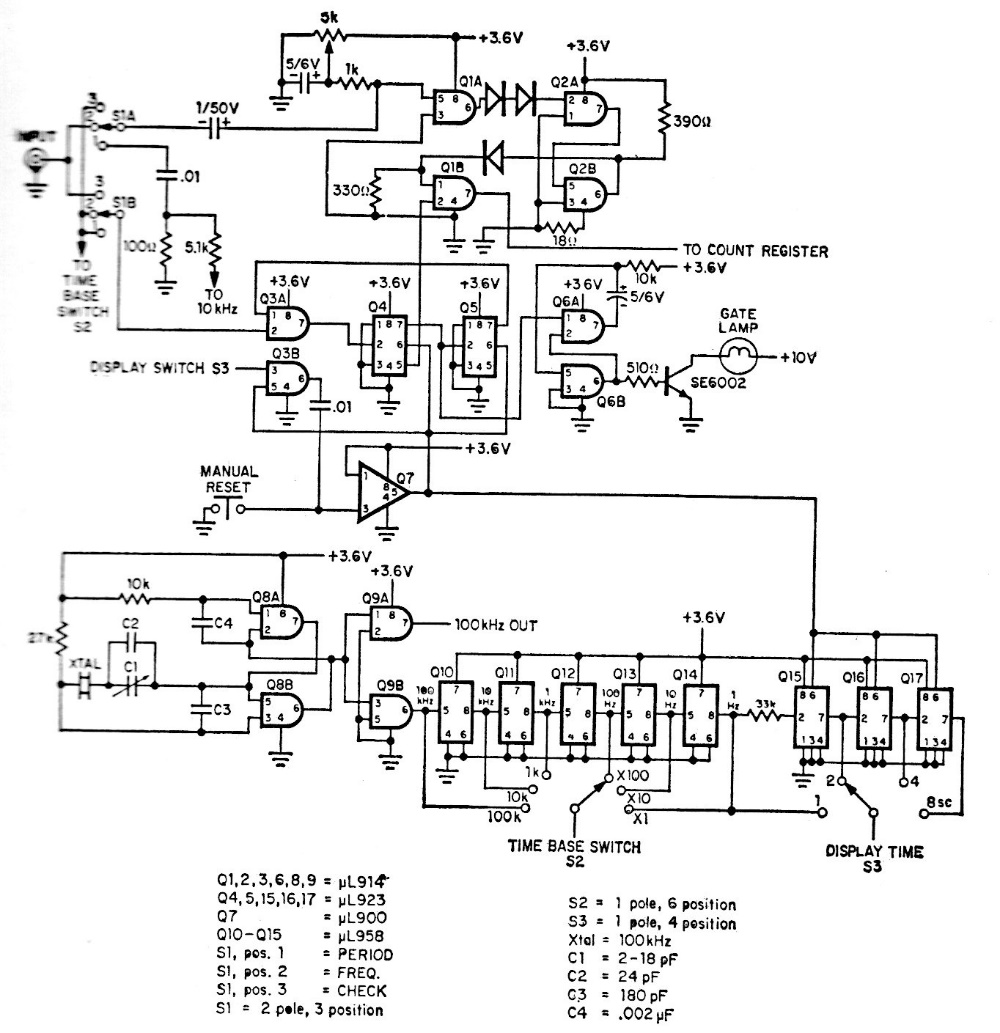

10 MHz counter (CB20128E)

This meter has a 0.001% tolerance and was found in an old American publication. The circuit has a selectable output.

| Clique na imagem para ampliar |
