JFET Tone Control (CB20011E)

Details
Written by: Newton C. Braga

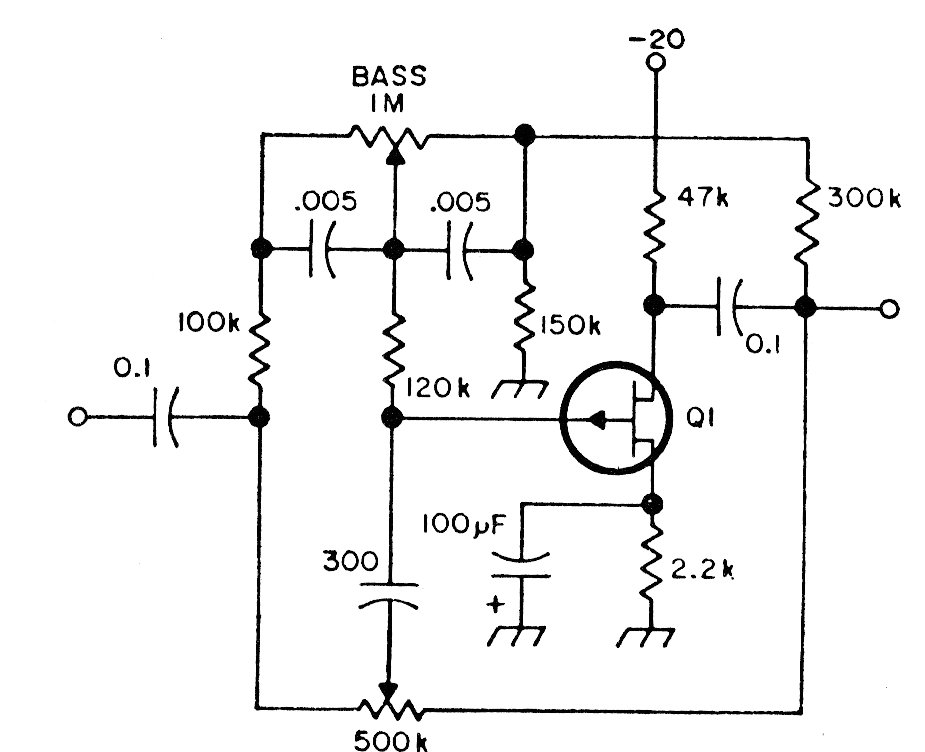

The use of field effect transistors in this circuit improves its performance. This configuration is from a 1975 circuit manual. The transistor can be any general-purpose FET such as MPF102 or BF245.
