Fast Voltage Follower (CB20152E)

Details
Written by: Newton C. Braga

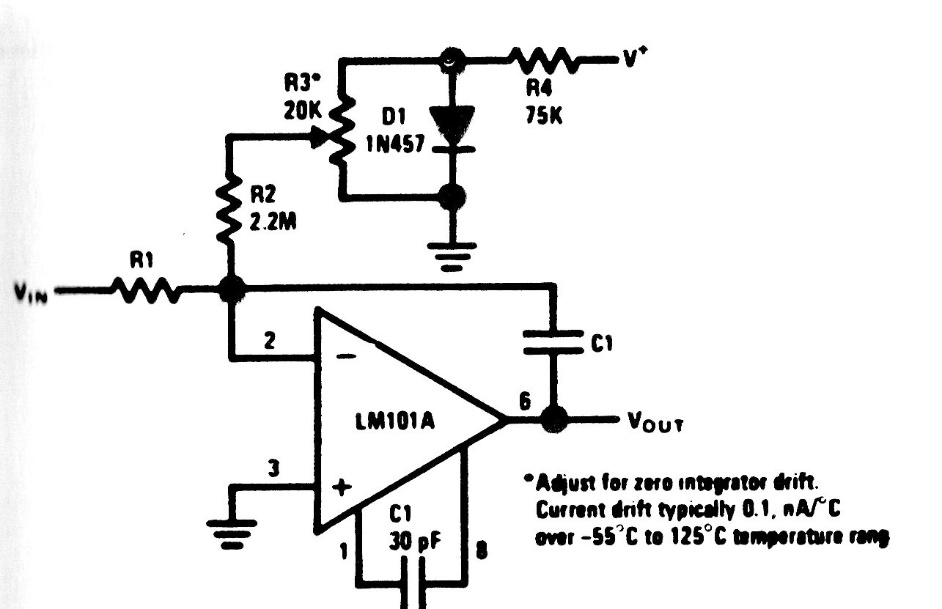

This circuit is from a factory manual from the 80s. The circuit can be implemented with modern operationals. The supply must be symmetrical, and the diode is general-purpose.
