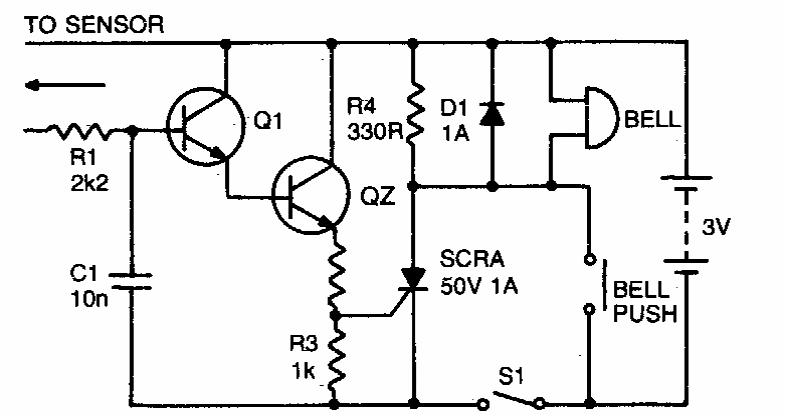

We found this circuit in an old documentation, but it is still current. General purpose transistors can be used, and the SCR can be the TIC106. The bell is a transducer with an oscillator (buzzer).
| Clique na imagem para ampliar |
Rain alarm (CB20779E)
- Details
- Written by: Newton C. Braga
