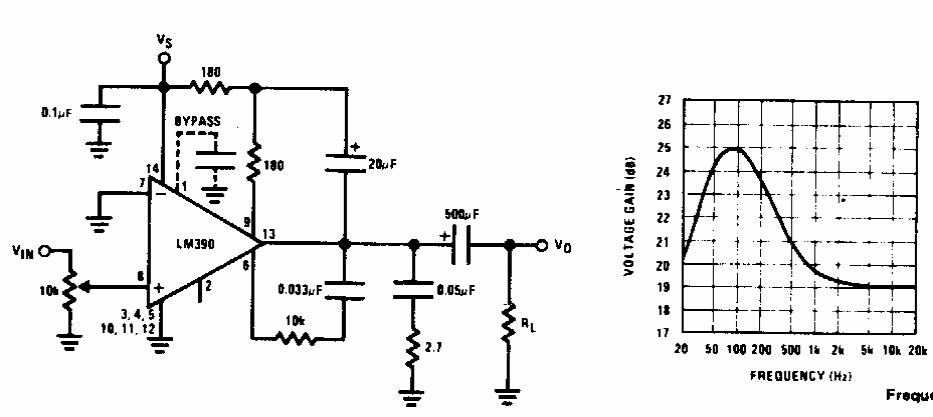

This circuit was found in documentation from the 1980s. The integrated circuit is from the time and the voltage depends on the desired power, and the component's datasheet should be consulted.
| Clique na imagem para ampliar |
Bass boost amplifier (CB20802E)
- Details
- Written by: Newton C. Braga
