Current indicator (CB20965E)

Details
Written by: Newton C. Braga

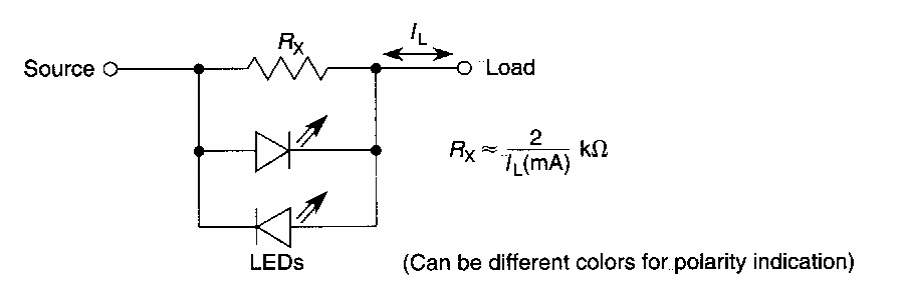

This bidirectional circuit was found in an American documentation from the 80's. The LEDs are common red, and the resistor is calculated according to the formulas next to the diagram.




| Clique na imagem para ampliar |
