We obtained this circuit from the Texas Instruments component datasheet (2019). The circuit is an improvement over the previous one, enabling bidirectional current sensing. The supply voltage is 2.7 to 5.5 V.
| Clique na imagem para ampliar |

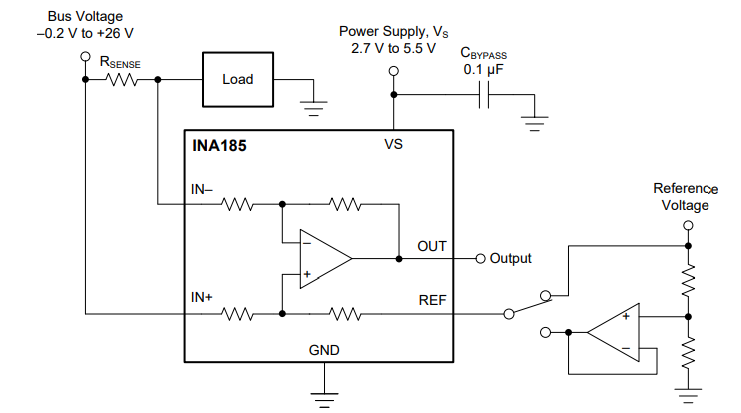

Bidirectional current sensor INA185 (CB20395E)
- Details
- Written by: Newton C. Braga
