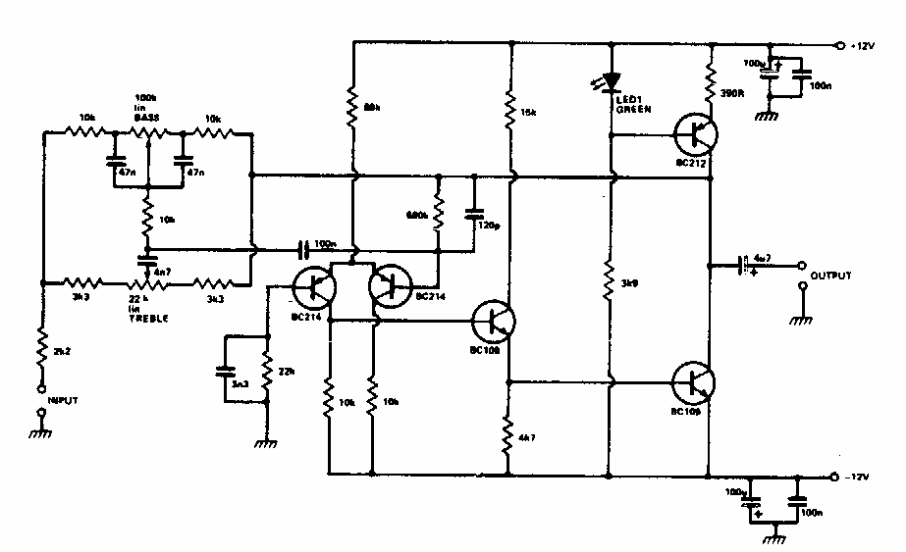

This circuit was found in an American documentation from the 1980s. The sensitivity ranges from 100 mV to 1 V. The supply must be done with an excellent filtering source.
| Clique na imagem para ampliar |
High quality tone control (CB20805E)
- Details
- Written by: Newton C. Braga
