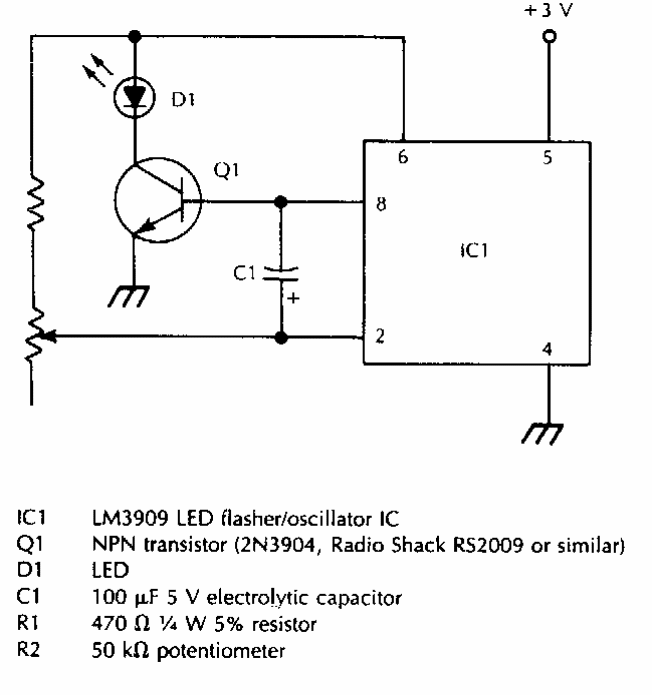

High power LED flasher (CB20944E)

Found in American documentation from the 1980s, this circuit shows how to use an LM3909 pulsator in a high-power variable circuit.

| Clique na imagem para ampliar |

Notch filter LM3900 (CB15259E)
Other amplifiers of the series like the MC3301, MC3401 and LM2900 can be used in this circuit. We found...
Circuit with sensor (CB7104E)
This type of sensor was used in sensitive infrared systems from the 1960s. This circuit was found...
Variable Voltage Controlled Attenuator (CB4236E)
This circuit was obtained from an American 80's documentation. The balanced mixer can be shown in...
