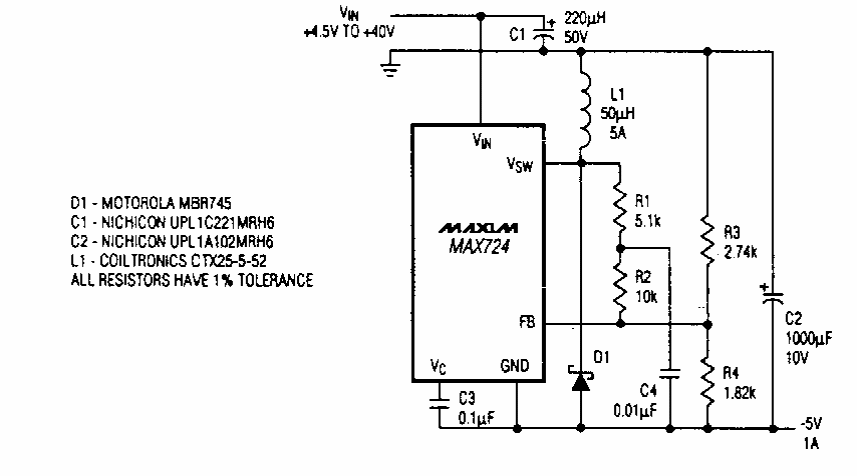

Positive to negative voltage converter (CB20998E)

This circuit was found in old Maxim documentation. Check the availability of the IC if you are going to build the circuit. The output current is 1A.

| Clique na imagem para ampliar |

Galvanometer amplifier (CB21651E)
Obtained from a 1967 documentation, this circuit uses transistors from the time. The galvanometer can be a...
Bidirectional DC Motor Control (CB19566E)
Motors up to 2 A can be controlled by this circuit, which requires a symmetrical source. Although...
Six Transistor Superheterodyne Receiver (CB964E)
This sensitive MW receiver was found in a publication of year 1958., The circuit uses germanium...
