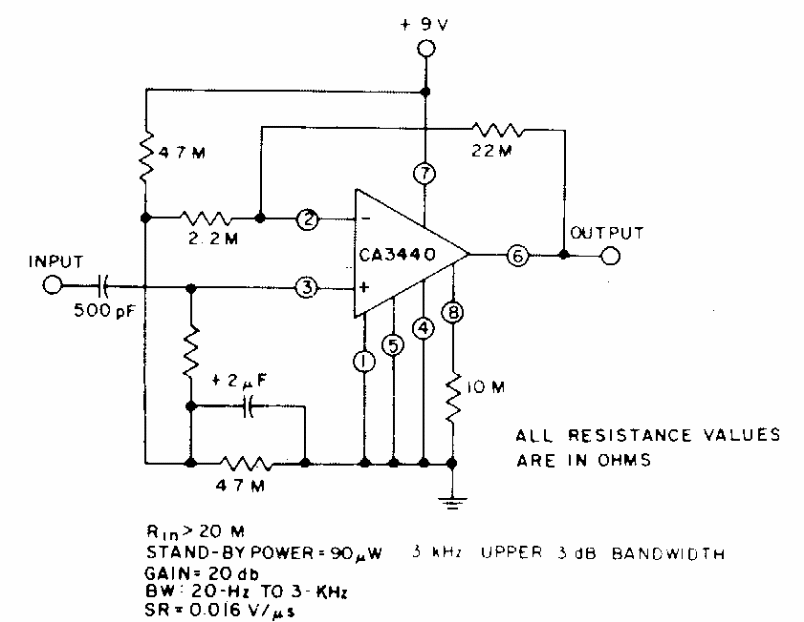

This high impedance amplifier is from 1985 documentation by General Electronic. The amplifier with FET at the entrance is from the period and the source is 9 V.
| Clique na imagem para ampliar |
20dB amplifier (CB20656E)
- Details
- Written by: Newton C. Braga
