Flip Flop with Operational (CB20949E)

Details
Written by: Newton C. Braga

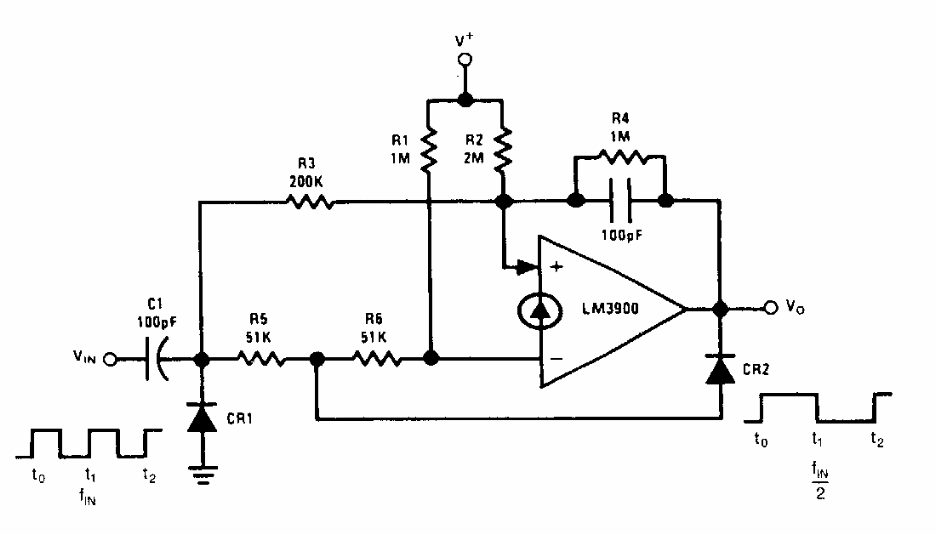

This circuit was found in a National Semiconductor manual from the 1980s. The operational amplifier is from that time and the waveforms are shown in the diagram.
