SCR Full wave dimmer (CB20674E)

Details
Written by: Newton C. Braga

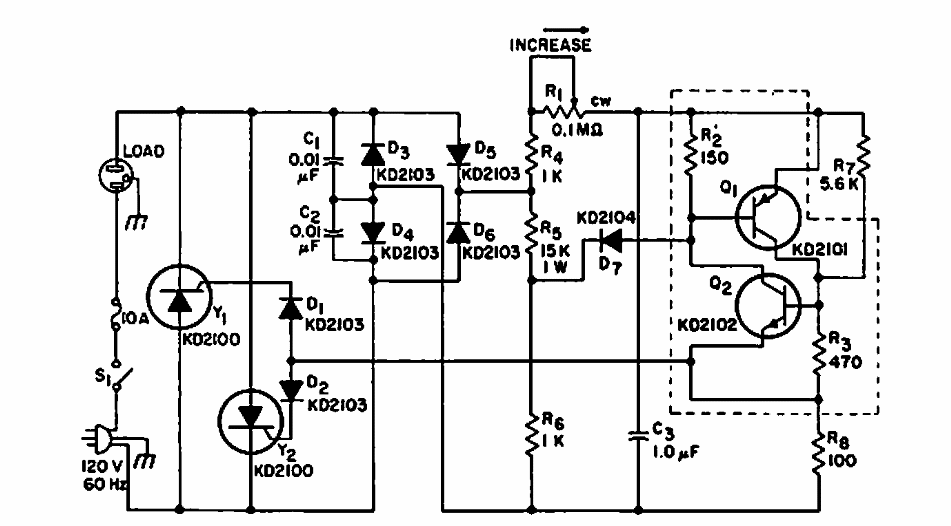

Found in a 1967 RCA manual, this circuit uses components from the era that can be replaced by modern equivalents. The circuit is for resistive loads.




| Clique na imagem para ampliar |
