PH meter (CB20731E)

Details
Written by: Newton C. Braga

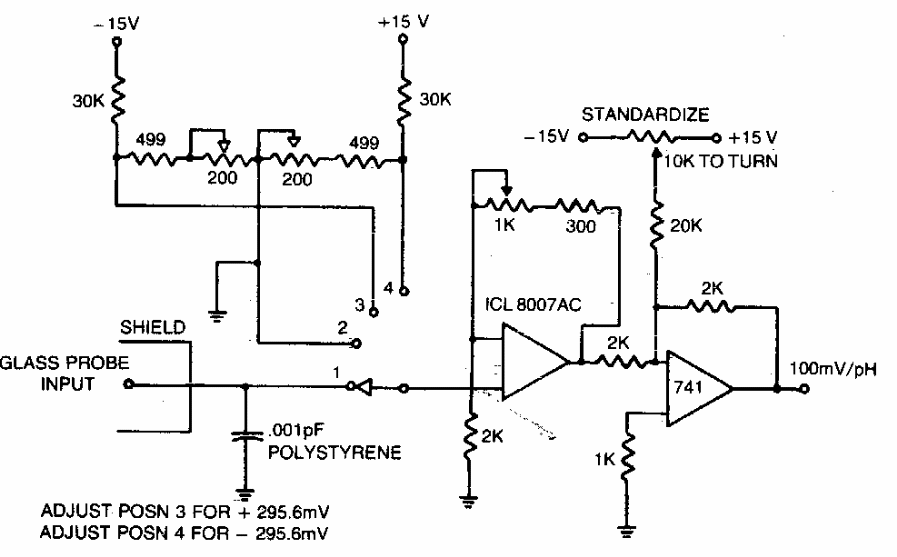

This circuit was obtained in an old American documentation. The integrated circuit used is uncommon today. Modern equivalents can be searched.




| Clique na imagem para ampliar |
