Musical Organ (CB20744E)

Details
Written by: Newton C. Braga

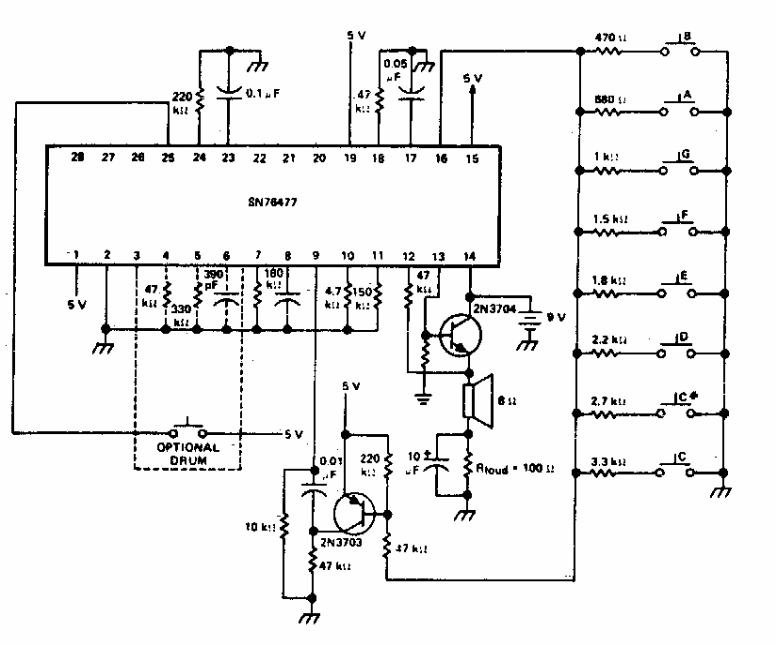

Found in documentation two years 80, this toy instrument uses an integrated circuit little commonly. As notes are given the values of key series resistors on the keyboard.
