Optic fiber receiver (CB20929E)

Details
Written by: Newton C. Braga

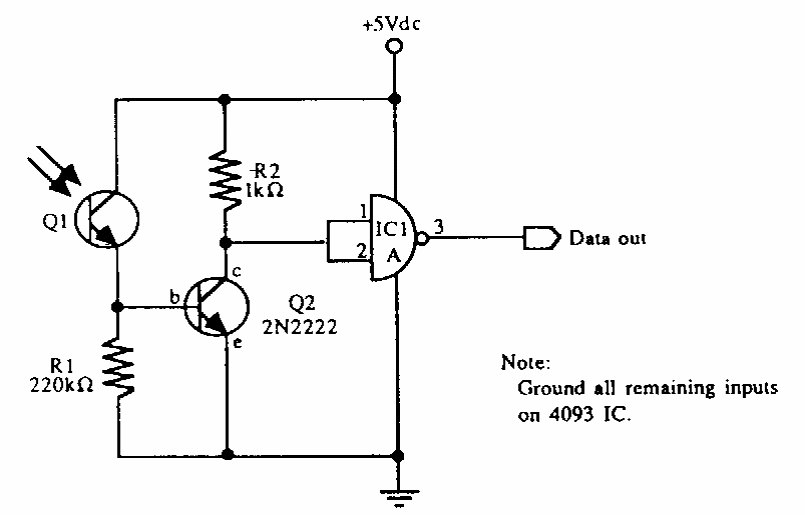

This is the receiver for the previous transmitter. The signal consists of digital pulses with a compatible TTL or CMOS output. The integrated circuit is a 4093 and a photodiode of any type.
