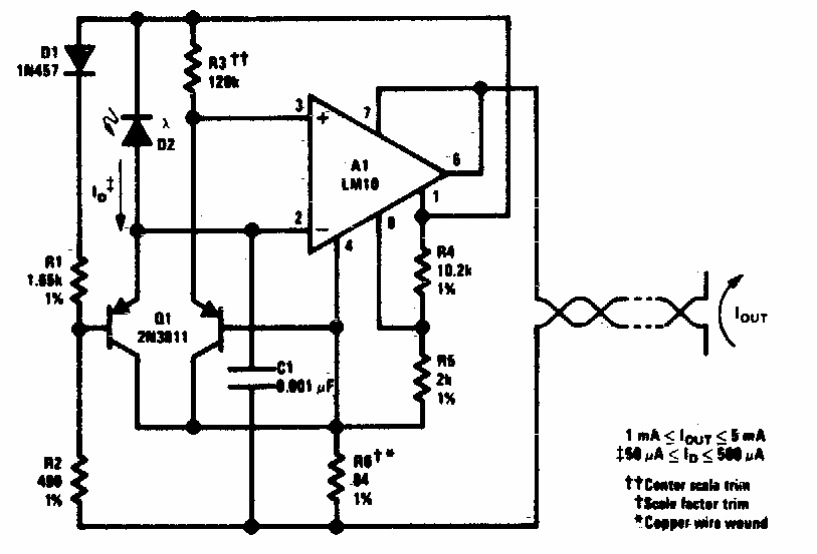

Logarithmic light sensor (CB20701E)

Details
Written by: Newton C. Braga



This circuit was found in an old manual of integrated circuits. The operational is of the time, uncommon nowadays. The power supply must be symmetrical.
