Negative ion detector (CB21001E)

Details
Written by: Newton C. Braga

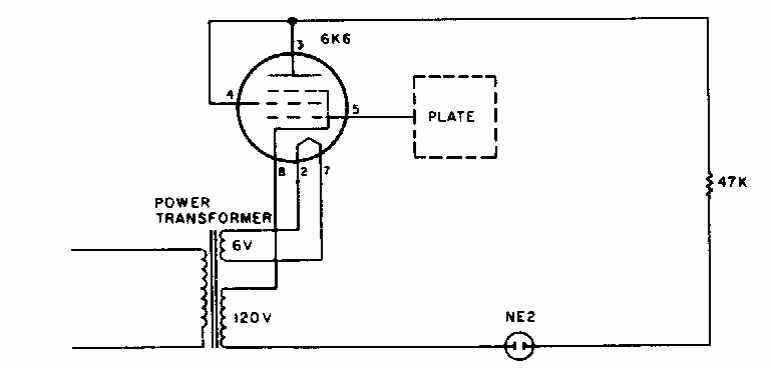

This tube circuit was found in the magazine 73 for radio amateurs in an issue from the 1980s. Note the transformer used to power the circuit.




| Clique na imagem para ampliar |
