Operational audio amplifier (CB21109E)

Details
Written by: Newton C. Braga

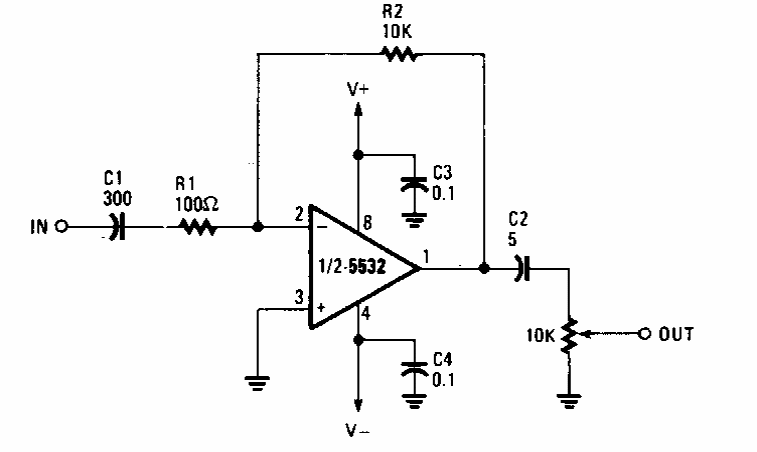

In the figure we have the basic configuration of an operational amplifier for audio signals. The circuit is from a Radio Electronics from the 90s. The power supply must be symmetrical.




| Clique na imagem para ampliar |
