6 V x 5 mA regulator (CB21537E)

Details
Written by: Newton C. Braga

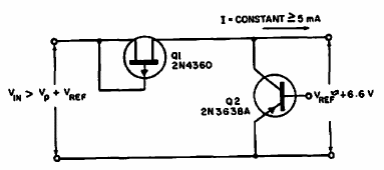

This 6V regulator with FET was found in an old Electronic Design. FET and transistor admit modern equivalents.
