RF Power Meter (CB21047E)

Details
Written by: Newton C. Braga

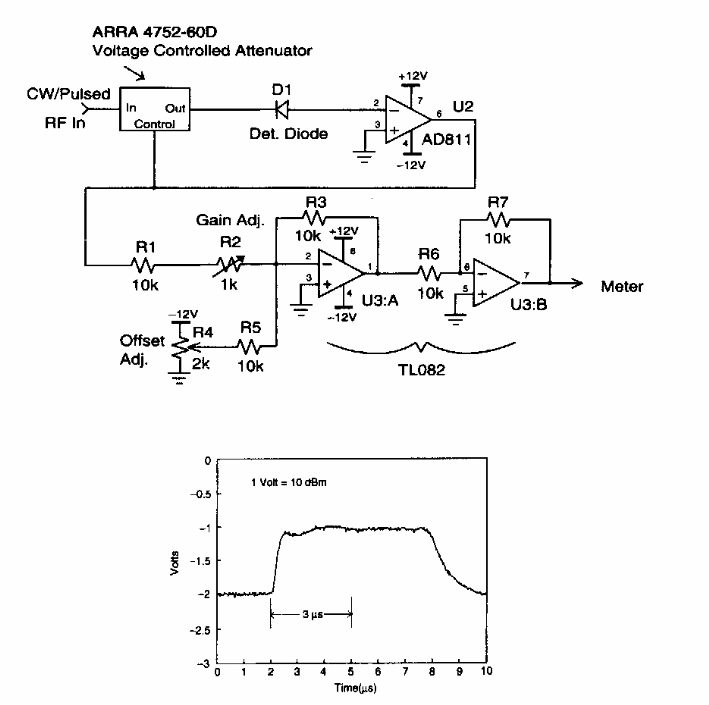

Found in an RF Design from the 90s, this circuit is based on components from the time. It can, however, be implemented with equivalent modern components.
