Triangular and square signal generator (CB21448E)

Details
Written by: Newton C. Braga

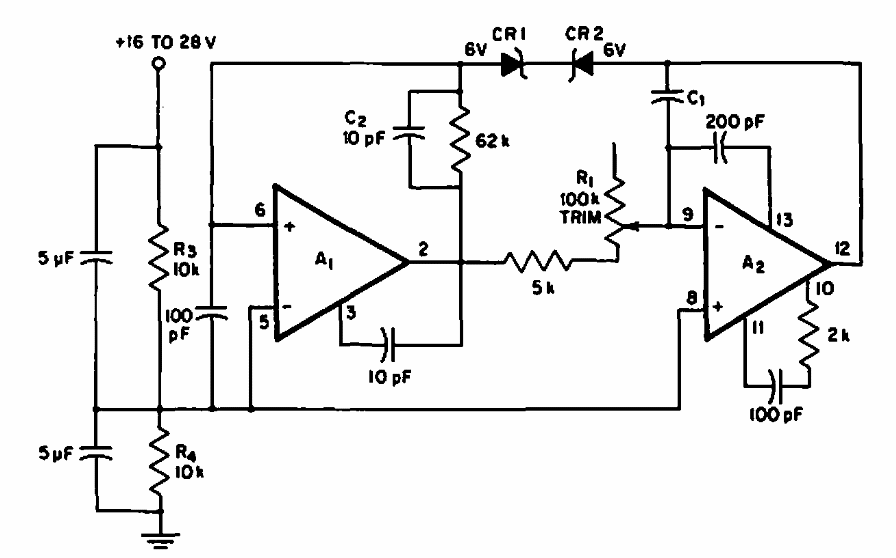

This circuit was taken from an old American documentation. It can be built with modern op amps. The power supply does not have to be symmetrical.




| Clique na imagem para ampliar |
